Berkeley SSHM-2 Horizontal Multi-Stage Pump B82456-01 2 H.P. 1/220V
SKU:
Berkeley SSHM2 B82456-01
$2,245.00
$3,092.30
Unit price
/
Unavailable
Berkeley SSHM-2 Horizontal Multi-Stage Pump B82456-01 2 H.P. 1/220V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call (844) 378-6771 To confirm your item will fit your system.
Product Specifications

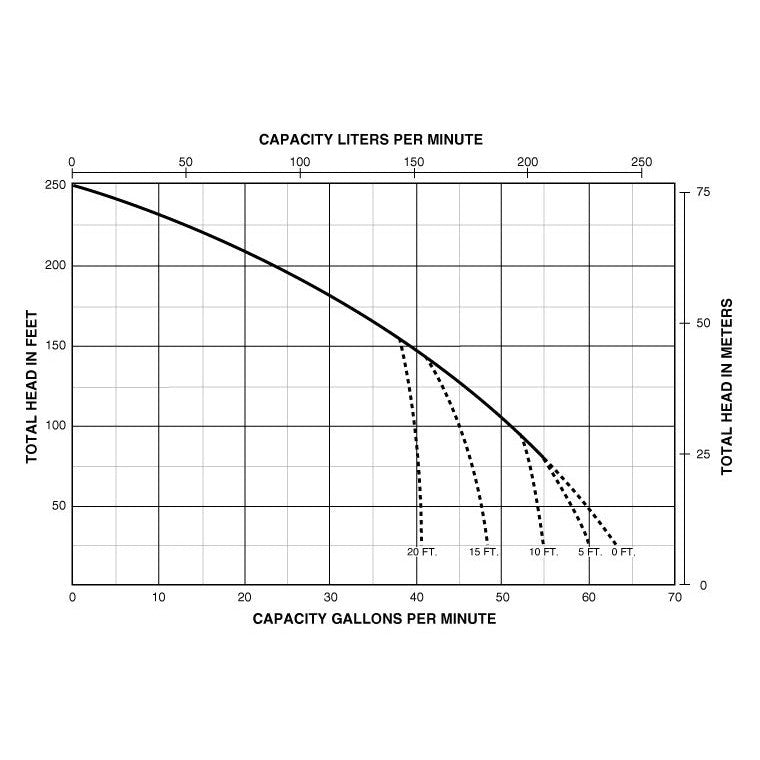

2 H.P. 1/220V 4 Stage SUCTION SIZE: 1-1/2" NPT DISCHARGE SIZE: 1-1/4" NPT OUTER SHELL: Polished 304 Stainless Steel IMPELLER & DIFFUSER CONSTRUCTION: Precision-molded Noryl(TM) SHAFT: 303 Stainless Steel MECHANICAL SEAL: High-pressure, carbon-ceramic seal faces. Buna-N elastomers MOTOR: 2 HP, 3450 RPM, 230v, High service factor, drip-proof design DESIGN POINT: 20 GPM @ 218feet; 30 GPM @ 195 feet MAXIMUM SUCTION PRESSURE: 20 psig LIQUID COMPATIBILITY: Clean Water Applications OPERATING TEMPERATURE: to 120 degrees F (50 degrees C) max PRIMING CAPABILITY: Max 4 minutes @ 20 feet suction lift MAXIMUM DISCHARGE PRESSURE: 130 psig
Horse Power: 2
Voltage: Single Phase
Application: Pressure Booster, Irrigation, Water Transfer
Ships Within: Same Day!
Product Type: Self Priming Pumps
Delivery and Shipping
Delivery and Shipping
Because of our vast inventory, 99% of all orders placed before 3:30PM EST (on weekdays, holidays do not apply), on our website or over the phone will be shipped the same day. We ship all of our products via UPS and as always, all orders over $ 250 will ship free of charge.Free Shipping does NOT apply to Hawaii or Alaska. Free Shipping on LTL orders (items over 100lbs) , does not include liftgate service, lift gate service would be billed to customer from shipping company.
Berkeley SSHM-2 Horizontal Multi-Stage Pump B82456-01 2 H.P. 1/220V
$2,245.00
$3,092.30
Unit price
/
Unavailable
Description
Description
The BERKELEY SSHM-2 Self-Priming Pump is the first to deliver high-pressure performance without priming problems and delays.
Common Applications
Designed for minimal electrical consumption and quiet operation, the SSHM-2 takes less time and trouble to produce the water volume and high-pressure needed to meet demanding applications such as:
- Irrigation Systems Water Supply Systems Shower
- Washing Systems Dewatering Heating
- Air Conditioning Systems Fountains
KEY FEATURES 2 H.P. 1/220V 4 Stage Self-Priming Design Once initially primed, the SSHM-2 will automatically re-prime cycle after cycle Cast Iron Motor Bracket & Integral Pedestal for rigid pipe connections and base mounting Suction Flange is made of heavy-duty cast iron Precision Molded Extra-Smooth Ports to maximize efficiency and performance Special Brass Priming Valve, proven to provide trouble-free operation during the priming cycle AO Smith Motor suitable for continuous duty operation WARRANTY 12 months from date of original installation,
