Deep Well Water Pumps: Jet Pumps for Wells Over 25 Feet

Deep well pumps built for wells deeper than 25 ft. Shop convertible and multi-stage deep well jet pumps that mount above ground and lift water through an ejector in the well, engineered for strong water pressure and long lift on homes, farms, and rural properties without city water. Pick your deep well pump by well depth, pumping level, and the flow (GPM) your household or irrigation needs, then match the horsepower to the depth. Not sure which deep well jet pump fits your well? Our team sizes it with you. Browse deep well pumps for sale below, all with free shipping and expert support.



(12 products)

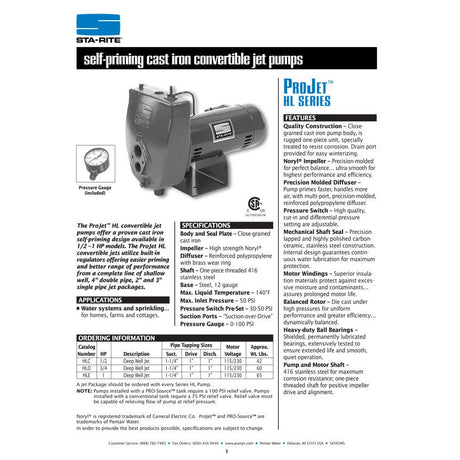

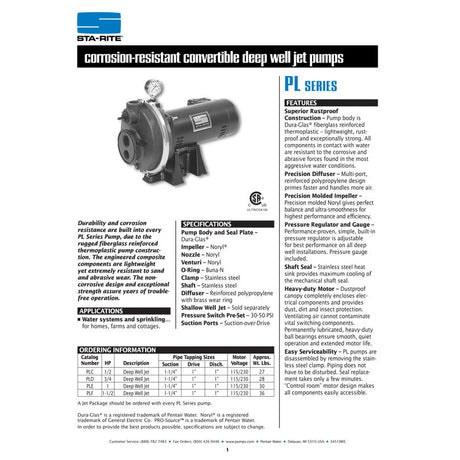

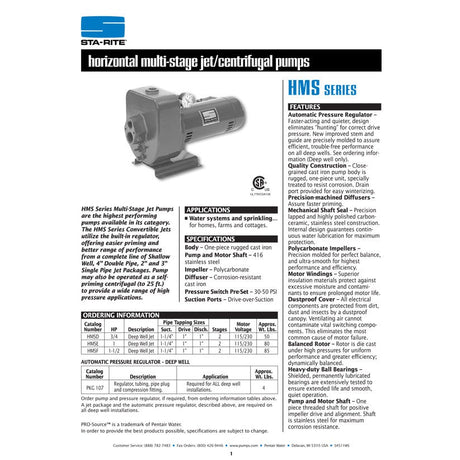

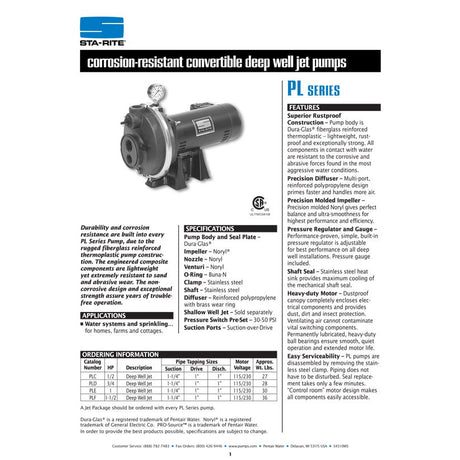

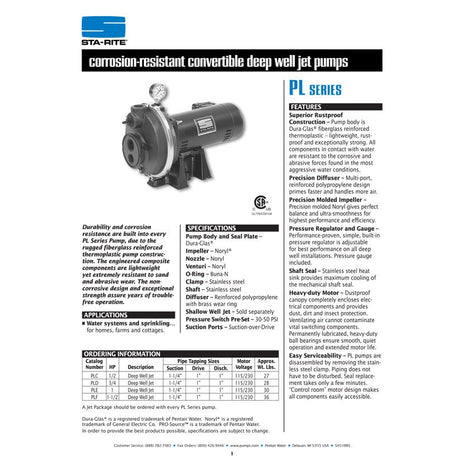

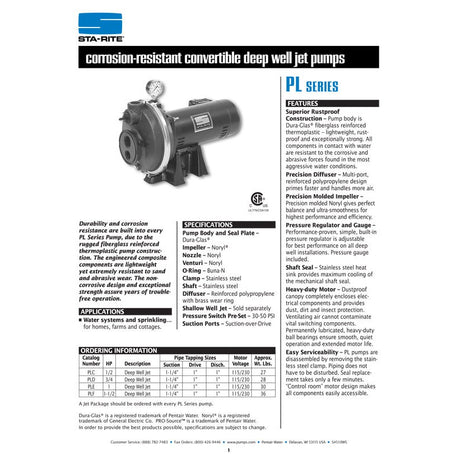

ePumps stocks Sta-Rite deep-well jet pumps in convertible, horizontal multi-stage, and vertical multi-stage designs (HL, PL, MS, and HMS series), available in 2-wire and 3-wire configurations and multiple horsepower options." If you go this route, also change the title/description back from "Submersible & Jet" to just jet/convertible so nothing over-promises.

  • For wells deeper than ~25 ft
  • High lift & high-pressure performance
  • convertible jet options
  • Free Shipping & Hassle-Free Returns

How a Deep Well Jet Pump Works

A deep well jet pump sits above ground, at the well head or in a basement or pump house, and lifts water through an ejector (the jet) installed down in the well. Two pipes connect them: one sends drive water down to the ejector, and the other brings the combined flow back up to the pump. Because the motor stays above ground, it is easy to reach for service, which is the main reason homeowners choose a jet pump for a deep well.

Deep Well Jet Pumps vs Submersible Well Pumps

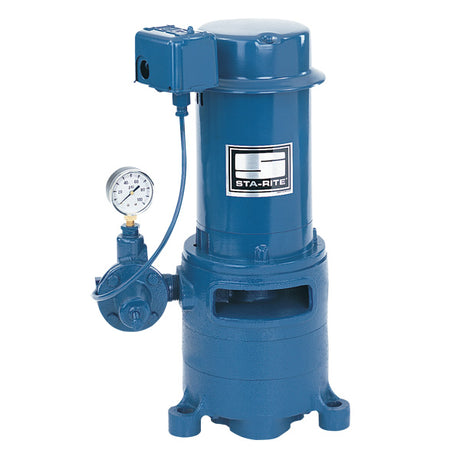

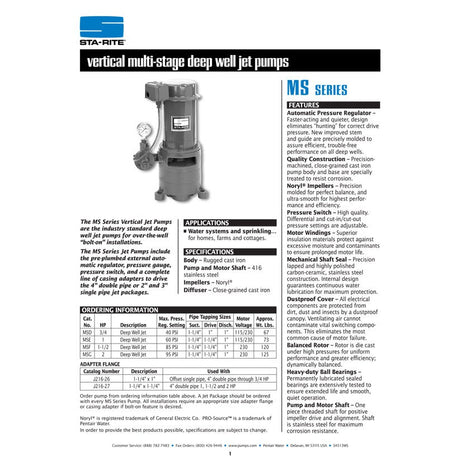

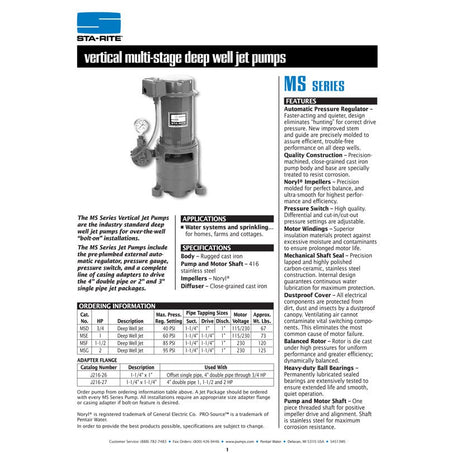

Deep well jet pumps work best when the water level sits between about 25 and 90 feet. Several models in this collection are convertible, so the same pump can serve a shallow well today and a deeper one later with a different ejector. Multi-stage models such as the Sta-Rite MS series add pressure for long runs to the house or a second story. Once the water level drops below the range a jet pump can lift, a 4 inch submersible well pump is the better fit, because it pushes water up from inside the well instead of pulling it.

Sizing a Deep Well Water Pump

Start with three numbers: the pumping water level (the depth to water while the pump is running), the pressure you want at the house, and the flow your household needs. Read the performance table on each product page for the flow the pump delivers at your depth and pressure setting, not the maximum flow at zero lift. A pump that is too small runs constantly and struggles to hold pressure, and one that is too large can draw the well down faster than it recovers

Not sure which ejector or horsepower you need? Send our team your well depth, static water level and the model of your current pump, and we will size the right deep well jet pump for you.

Not Sure Which Deep-Well Pump You Need?

We size submersible and convertible deep-well jet pumps for homes, farms, and commercial systems—based on depth, lift height, and pressure requirements.

FAQ's

What’s the difference between submersible and deep-well jet pumps?

  • Submersible: Installed down in the well — pushes water upward. Best for deeper wells and strong continuous pressure.

  • Convertible jet: Mounts above ground — pulls water from the well. Easier to service, ideal for mid-depth wells.

Do I need a pressure tank with a deep-well pump?

Usually yes. A pressure tank prevents short-cycling, protects the motor, and provides smooth, consistent water flow

What size deep-well pump do I need?

Match horsepower and GPM to well depth, lift height, and number of fixtures. Most homes use ½–1 HP. Large homes or farms may require 1–2 HP. Our support team can size it for you.

2-wire vs 3-wire — what’s the difference?

  • 2-wire: Capacitors are inside the pump; simpler installation

3-wire: Uses an external control box — easier to troubleshoot and service

How long does a deep-well pump last?

Most submersible pumps last 8–15 years with clean water and proper sizing. Sand or oversized pumps can reduce lifespan.
