What’s the Difference?

When selecting a centrifugal pump for commercial, industrial, or HVAC systems, two common options are end suction pumps and inline pumps. Both pump types are widely used for moving water through piping systems, but their design and installation methods are different.

Understanding the differences between end suction pumps and inline pumps can help engineers, contractors, and facility managers choose the right pump for their system’s performance, space, and maintenance requirements.

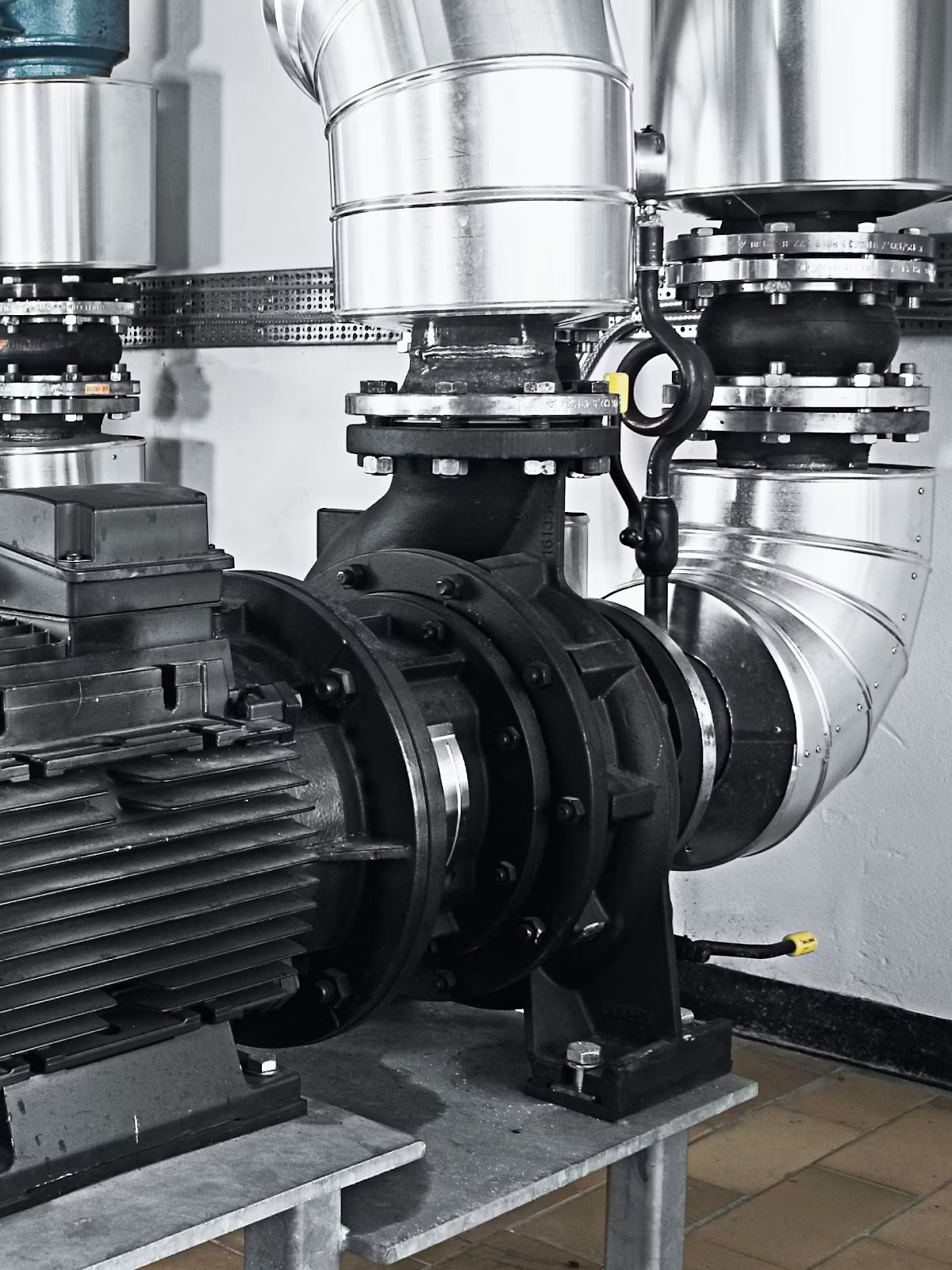

What Is an End Suction Pump?

An end suction pump is a centrifugal pump where the water enters the pump through the front of the pump housing (the suction side) and exits through a discharge port located at the top.

This design typically uses a horizontal configuration, where the pump is mounted on a baseplate and connected to the piping system with separate suction and discharge pipes.

End suction pumps are known for their durability, simple design, and ability to handle a wide range of flow rates and pressures.

They are commonly used in applications such as:

• Industrial water transfer systems


• Municipal water supply systems


• Cooling and circulation systems


• Irrigation systems


• General water pumping applications


Because of their straightforward design, end suction pumps are often easy to install, maintain, and repair.

What Is an Inline Pump?

An inline pump, often called a vertical inline pump, is a centrifugal pump designed so that the suction and discharge connections are located on the same axis within the pipeline.

This allows the pump to be installed directly within the piping system without requiring additional floor space or complex pipe configurations.

Inline pumps are typically installed vertically and are commonly used in systems where space is limited.

They are often used in:

• HVAC circulation systems


• Commercial building water systems


• Booster pump systems


• Heating and cooling loops


• Chilled water circulation systems


Because inline pumps integrate directly into the piping system, they are often chosen for installations where compact design and space efficiency are important.

Key Differences Between End Suction Pumps and Inline Pumps

The main difference between these two pump types is their design and installation configuration.

End suction pumps use a horizontal layout with separate suction and discharge connections, while inline pumps are designed to fit directly into a pipeline with both connections aligned on the same axis.

End suction pumps typically require more installation space, as they are mounted on a base and connected with additional piping. Inline pumps have a much smaller footprint because they are installed directly within the pipeline.

Performance can also differ depending on the application. End suction pumps are often used in systems requiring higher flow rates or higher pressures, while inline pumps are frequently used in moderate-flow circulation systems, such as HVAC loops.

Maintenance considerations may also vary. End suction pumps are generally easier to service because their components are more accessible. Inline pumps save space but may require more effort to access internal components depending on the installation.

When Should You Use an End Suction Pump?

End suction pumps are typically used in applications that require flexibility, durability, and higher flow capacity.

Common uses include:

• Industrial process systems


• Water transfer and supply systems


• Municipal pumping stations


• Agricultural irrigation systems


• Cooling water circulation in large facilities


These pumps are often selected for systems where performance and accessibility for maintenance are priorities.

When Should You Use an Inline Pump?

Inline pumps are best suited for systems where space efficiency and compact installation are important.

They are commonly used in:

• HVAC heating and cooling systems


• Chilled water circulation loops


• Booster systems for commercial buildings


• Mechanical rooms with limited space


• Closed-loop circulation systems


Because inline pumps integrate directly into the piping system, they are ideal for installations where floor space is limited or piping simplicity is desired.

Choosing the Right Pump for Your System

Selecting between an end suction pump and an inline pump depends on several system factors, including:

• Available installation space


• Required flow rate and pressure


• System layout and piping configuration


• Maintenance accessibility


• Application type (industrial, HVAC, municipal, etc.)


Engineers often evaluate these factors to determine which pump design best fits the overall system requirements.

Final Thoughts

End suction pumps and inline pumps are both important centrifugal pump designs used across commercial and industrial water systems.

End suction pumps are valued for their flexibility, durability, and high flow capabilities, making them suitable for a wide range of pumping applications. Inline pumps are designed for compact installation and efficient circulation, making them ideal for HVAC systems and space-constrained environments.

Understanding the differences between these pump types helps ensure the right pump is selected for reliable system performance and long-term efficiency.
