What’s the Difference?

When dealing with water removal systems in buildings, two commonly mentioned pump types are condensate pumps and sump pumps. While both pumps remove water, they are designed for very different purposes and operate in different types of systems.

Understanding the difference between a condensate pump and a sump pump helps homeowners, contractors, and facility managers choose the right equipment for their specific needs.

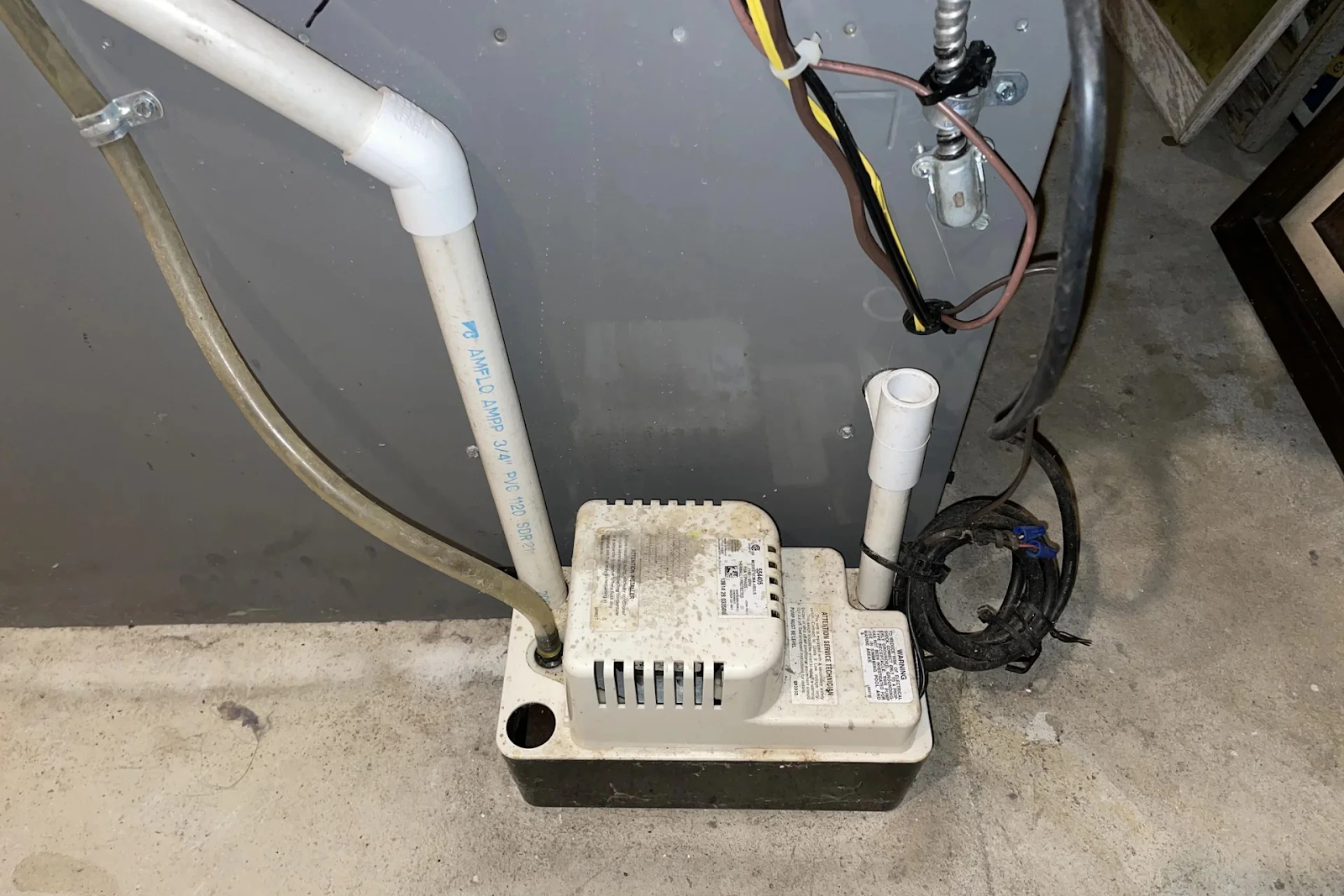

What Is a Condensate Pump?

A condensate pump is a small pump designed to remove water that forms as condensation in HVAC systems. This type of water is commonly produced by air conditioners, high-efficiency furnaces, boilers, and dehumidifiers.

When these systems operate, moisture from the air condenses into water. Normally, this water drains by gravity into a nearby floor drain. However, when the HVAC system is installed in a basement or another location where gravity drainage is not possible, a condensate pump moves the water upward to a drain line.

Condensate pumps are typically compact units that sit near the HVAC equipment and automatically activate when water collects in the pump reservoir.

Common uses for condensate pumps include:

• Air conditioning systems


• High-efficiency furnaces


• Boiler systems


• Dehumidifiers


• Refrigeration equipment


These pumps are designed to handle small amounts of water produced by condensation, rather than large volumes of groundwater.

What Is a Sump Pump?

A sump pump is designed to remove water that collects around a building’s foundation, typically in basements or crawl spaces. These pumps are used primarily to prevent flooding and water damage.

Sump pumps are installed inside a sump basin or pit that is built below floor level. When groundwater or rainwater enters the pit, the pump automatically activates and moves the water away from the building through a discharge pipe.

Because sump pumps deal with much larger volumes of water, they are built to be more powerful and durable than condensate pumps.

Sump pumps are commonly used for:

• Basement flood prevention


• Groundwater removal


• Foundation drainage systems


• Crawl space water management


• Stormwater control


Most sump pumps are either submersible pumps, which sit directly inside the pit, or pedestal pumps, where the motor sits above the pit.

Key Differences Between Condensate Pumps and Sump Pumps

Although both pumps remove water, they serve very different roles within a building.

A condensate pump handles small amounts of water produced by HVAC equipment, while a sump pump manages large volumes of groundwater or rainwater that could otherwise flood a basement.

Condensate pumps are typically small units installed near mechanical equipment. In contrast, sump pumps are larger systems installed in underground pits designed to collect water from the surrounding soil.

Another important difference is the capacity of the pumps. Condensate pumps move relatively small amounts of water slowly and steadily. Sump pumps are designed to move large amounts of water quickly during heavy rain or flooding conditions.

Can a Condensate Pump Replace a Sump Pump?

No. A condensate pump cannot replace a sump pump because it is not designed to handle the large water volumes associated with groundwater or basement flooding.

Condensate pumps are built specifically for light-duty water removal from HVAC systems, while sump pumps are built for heavy-duty water management around building foundations.

Using the wrong pump type can lead to system failure or water damage.

When Should You Use a Condensate Pump?

A condensate pump should be used when HVAC equipment produces condensation but a gravity drain is not available.

Typical situations include:

• Air conditioning systems installed in basements


• High-efficiency furnaces located below drain level


• Dehumidifiers that produce condensate


• Mechanical rooms without floor drains


In these cases, the condensate pump moves water to a nearby drain, sink, or plumbing line.

When Should You Use a Sump Pump?

Sump pumps are used when water collects around a building’s foundation and must be removed to prevent flooding.

They are commonly installed in:

• Homes with basements prone to flooding


• Buildings with high groundwater levels


• Properties located in areas with heavy rainfall


• Crawl spaces where water accumulation occurs


Sump pumps provide critical protection against water damage, mold growth, and structural problems.

Final Thoughts

Condensate pumps and sump pumps serve very different purposes, even though both remove water.

Condensate pumps are small systems designed to move condensation produced by HVAC equipment. Sump pumps are larger, more powerful systems used to remove groundwater and protect buildings from flooding.

Choosing the correct pump ensures the system works efficiently and helps protect buildings, equipment, and property from water-related issues.
