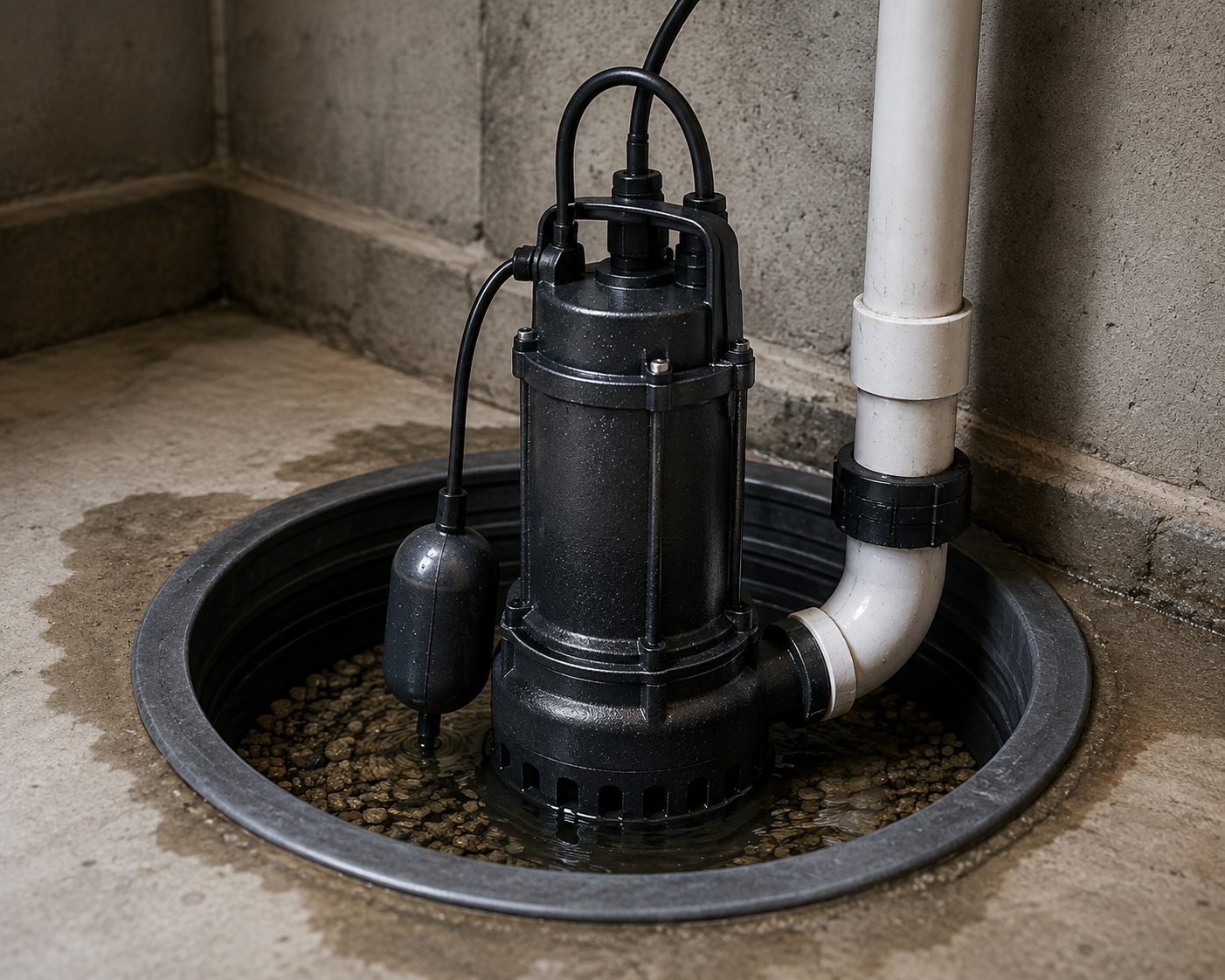

What Size Sump Pump Do I Need? Sizing by Horsepower, GPM, and Pit Depth

Most homes are well protected by a 1/3 HP or 1/2 HP submersible sump pump, but the right size depends on three things: how much water reaches your pit, how high the pump has to lift it, and the size of the pit itself. Horsepower alone does not tell you enough.

This guide walks through the numbers that actually decide the size, so you buy once and buy right. When you are ready to compare models, browse our submersible sump pumps by horsepower and flow.

1. Sizing Starts With Three Numbers

Before you look at horsepower, you need a rough figure for each of these:

• Inflow (GPM): how fast water collects in the pit during a heavy storm or snowmelt.
• Total head (feet of lift): the vertical distance the pump pushes water, plus friction from the pipe run.
• Pit size: the diameter and depth of the basin, which controls how often the pump cycles.

Get those three close to right and the horsepower choice almost makes itself.

2. Sump Pump Sizing by Horsepower

Use this as a starting point, then adjust up for high lift or a wet site:

Notice that flow drops as lift rises. A pump rated for 60 GPM at the outlet may deliver far less once it lifts water 12 feet and pushes it 30 feet to the discharge point.

3. How to Measure Your Real Inflow

You do not need a meter. During or right after a heavy rain, unplug the pump, let the pit fill to the turn-on point, and time how fast the water rises with a tape measure inside the basin.

1. Measure the pit diameter and figure the gallons per inch of depth (a common 18 inch basin holds roughly 1.1 gallons per inch).
2. Time how many inches the water rises in one minute.
3. Multiply inches per minute by gallons per inch to get your inflow in GPM.

Pick a pump that clears your peak inflow comfortably at your actual lift, with headroom to spare.

4. Total Head: Why Lift and Pipe Length Matter

Total head is vertical lift plus friction loss. Vertical lift is the distance from the pump to the point where the discharge line exits above grade. Friction adds up over long horizontal runs, elbows, and check valves. A pump with plenty of horsepower on paper can still struggle if the discharge line is long or undersized. Match the pump curve to your total head, not just the label.

5. Pit Diameter and Depth

A basin that is too small makes the pump start and stop constantly, which wears out the motor and the float switch. For most homes an 18 to 24 inch diameter basin gives the pump enough drawdown to run in longer, healthier cycles. If your pump short cycles, the pit or the switch is often the cause, not the pump.

6. When to Size Up

Move up a horsepower class if any of these apply to your home:

• High water table: a spring, a hillside, or a high seasonal table that keeps the pit working hard.
• Long or high discharge: more than about 10 feet of lift or a long horizontal run to daylight.
• Finished basement: the cost of a flood is high, so extra capacity is cheap insurance.
• A backup plan: pair the primary with a battery or water powered backup for power outages, which is when floods often happen.

If your current pump runs nonstop or cannot keep up, read our guide on why a sump pump runs constantly, then step up a size. If it hums but moves no water, start with sump pump not pumping water.

Final Thoughts

Do not shop by horsepower alone. Estimate your inflow, measure your lift, check your pit size, then choose the pump that clears your peak flow with room to spare. For most homes that lands on a quality 1/3 or 1/2 HP submersible, and the extra capacity pays for itself the first time a storm rolls in.

Frequently Asked Questions

Is a 1/2 HP sump pump better than a 1/3 HP?

Not always. A 1/2 HP pump moves more water and handles higher lift, which helps on wet sites or long discharge runs. On an average dry basement with short lift, a 1/3 HP pump runs in healthier cycles and lasts longer. Match the pump to your inflow and lift, not to the biggest number.

How many GPM do I need for my sump pump?

Measure your peak inflow during a heavy storm using the one minute rise test in this guide. Most homes fall between 20 and 40 GPM at their actual lift, but a wet site can need far more. Always leave headroom above your measured peak.

What size sump pit or basin should I use?

An 18 to 24 inch diameter basin suits most homes. A larger basin gives the pump more drawdown so it runs in longer cycles and starts less often, which extends the life of the motor and float switch.

Does discharge pipe length affect the pump size I need?

Yes. Long horizontal runs, extra elbows, and a high exit point all add friction and lift, so the pump delivers less flow than its label suggests. If your run is long, size up or use a larger discharge pipe.
