Condensate return pumps play a critical role in steam heating and boiler systems by collecting and returning condensate — hot water formed when steam releases its heat — back to the boiler or feedwater system. When gravity alone cannot move condensate back to the boiler, a condensate return pump ensures efficient, reliable system operation.
Understanding how condensate return pumps work, the different types available, and when they’re needed helps reduce energy waste, lower operating costs, and protect boiler equipment.

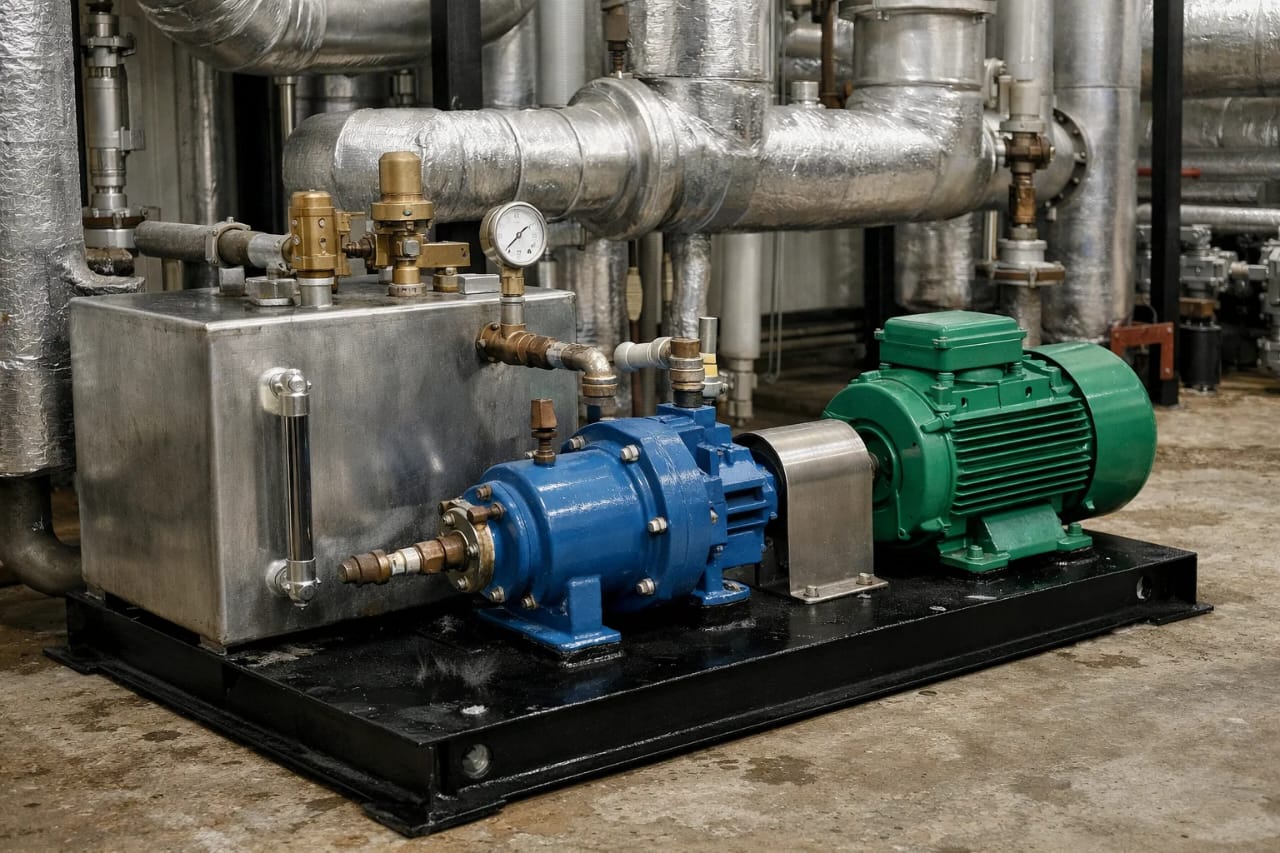

What Is a Condensate Return Pump?
A condensate return pump is a mechanical device designed to collect condensate from steam systems and pump it back to a boiler feed tank, deaerator, or boiler when gravity return is not possible.
As steam travels through heating coils, radiators, or process equipment, it condenses into hot water. Instead of discharging this valuable water to drain, condensate return pumps recover and reuse it, improving overall system efficiency.
How Does a Condensate Return Pump Work?
Condensate return systems typically include a receiver tank, one or more pumps, and a level-sensing control such as a float switch.
The process works as follows:
-
Collection – Steam condenses into hot water as it gives up heat in the system and flows into the receiver tank.
-
Level Detection – As condensate accumulates, a float switch or level control monitors the liquid level.
-
Pumping – When the tank reaches a set level, the pump activates and moves the condensate.
-
Return – The hot condensate is pumped back to the boiler feed tank, deaerator, or boiler for reuse.
This cycle repeats continuously, maintaining stable boiler operation.
Common Types of Condensate Return Pumps
Condensate return pumps are available in several configurations depending on system temperature, pressure, and reliability requirements.
Electric Condensate Return Pumps
These systems use an electric motor-driven centrifugal pump to move condensate. They are commonly used in low- to medium-temperature steam systems and are often configured as:
-
Simplex systems – One pump
-
Duplex systems – Two pumps (one duty, one standby for redundancy)
Electric condensate pumps are widely used due to their simplicity and cost-effectiveness.
Steam-Powered (Pneumatic) Condensate Pumps
Steam-powered pumps use steam or compressed air as the driving force instead of electricity. They are ideal for high-temperature condensate applications where electric pumps may struggle due to cavitation or NPSH limitations.
These pumps are commonly found in industrial and high-pressure steam systems.
Common Uses for Condensate Return Pumps
Condensate return pumps are used in many steam-based systems, including:
-
Industrial steam heating systems
-
Manufacturing and processing facilities
-
Commercial boiler rooms
-
Hospitals, schools, and institutional buildings
-
HVAC steam coils and heat exchangers
-
Process heating applications
Any steam system where condensate cannot flow back by gravity will require a condensate return pump.
Benefits of Using a Condensate Return Pump
Proper condensate recovery provides several important benefits:
-
Energy savings by reusing hot condensate
-
Reduced fuel costs due to higher feedwater temperatures
-
Lower water and chemical usage
-
Improved boiler efficiency
-
Reduced thermal shock to the boiler
-
Extended equipment lifespan
Recovering condensate is one of the most effective ways to improve boiler system efficiency.
Condensate Return Pumps vs. Boiler Feed Pumps
While both pumps support boiler operation, they serve different purposes.
Condensate return pumps move low-pressure condensate from remote points back to the feedwater system. Boiler feed pumps, by contrast, deliver high-pressure feedwater directly into the boiler.
In many systems, condensate return pumps feed into a boiler feed system, working together to maintain proper water levels and temperature.
Who Should Use a Condensate Return Pump?
Condensate return pumps are essential for:
-
Facilities operating steam boilers
-
Buildings with distributed steam heating equipment
-
Industrial plants using steam for processing
-
Systems with elevated condensate return points
-
Any application where gravity return is insufficient
If condensate cannot naturally flow back to the boiler, a return pump is required.
How to Choose the Right Condensate Return Pump
Selecting the correct condensate return pump involves several key considerations:
1. Condensate Flow Rate
Determine how much condensate the system produces, typically measured in gallons per minute (GPM).
2. Temperature & Pressure
High-temperature condensate may require steam-powered pumps or special materials to avoid cavitation and damage.
3. Receiver Tank Size
The receiver must be large enough to handle peak condensate loads without short-cycling the pump.
4. Pump Configuration
Decide between simplex or duplex systems based on reliability and redundancy needs.
5. NPSH Requirements
Electric pumps require sufficient net positive suction head to operate safely without cavitation.
6. Control & Safety Features
Overflow switches, alarms, and automatic shutdowns protect the boiler and system in the event of failure.
Common Condensate Return Pump Issues
If improperly sized or maintained, condensate return pumps may experience:
-
Cavitation due to high condensate temperature
-
Pump short-cycling
-
Receiver tank overflow
-
Float switch failure
-
Seal and bearing wear
Proper design and routine maintenance help prevent these issues.
Maintenance Tips for Condensate Return Pumps
To ensure reliable operation:
-
Inspect float switches and level controls regularly
-
Monitor pump cycling frequency
-
Check for leaks, vibration, or unusual noise
-
Maintain insulation on condensate piping
-
Schedule professional inspections periodically
Preventive maintenance reduces downtime and protects boiler systems.
