Introduction

When selecting a pump for your system, one of the most important design decisions is choosing between a vertical pump and a horizontal pump.

Both configurations are widely used across residential, commercial, and industrial applications—but they differ significantly in terms of space requirements, performance, maintenance, and installation.

In this guide, we’ll break down the key differences so you can determine which pump type is best for your application.

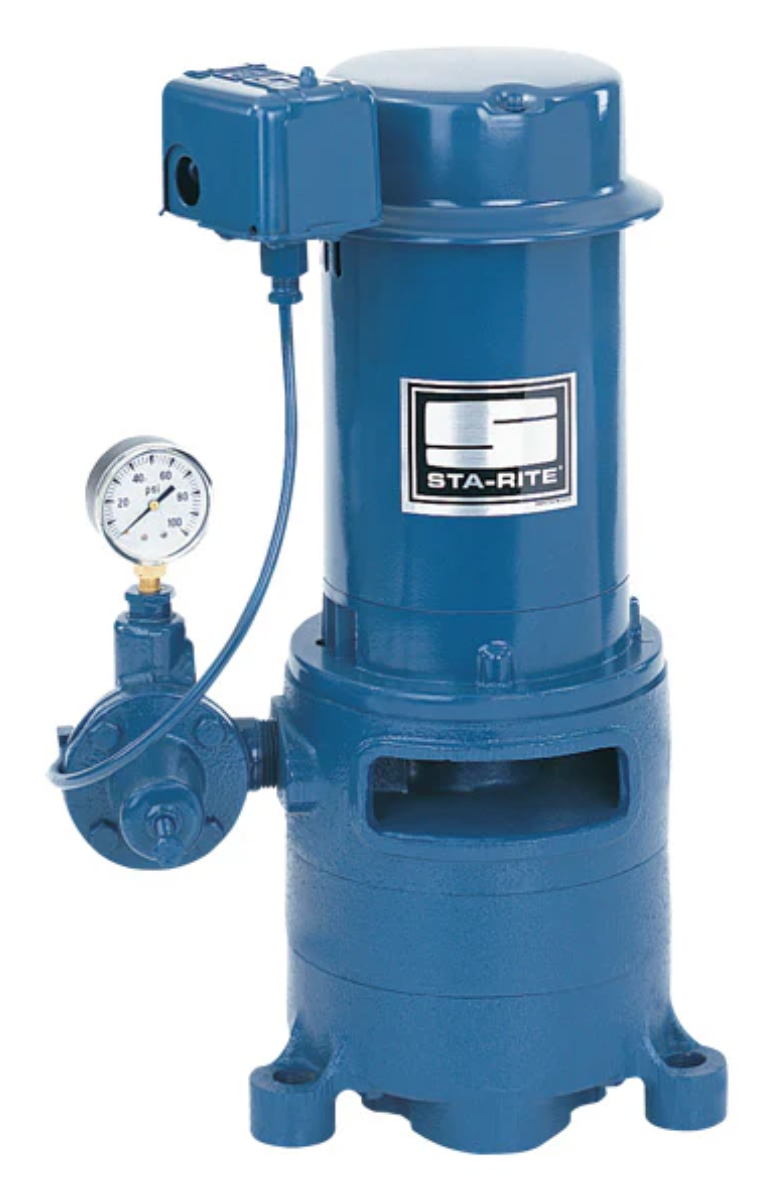

What Is a Vertical Pump?

A vertical pump is designed with the shaft positioned vertically, often installed directly into a sump, tank, or well. These pumps are commonly used where space is limited or fluid needs to be lifted from below ground.

Key Features:

• Compact, vertical design
• Often submerged or partially submerged
• Minimal floor space required
• Ideal for deep or low-suction applications

Advantages:

• Space-saving footprint
• Excellent for low NPSH conditions
• Ideal for deep wells and sump applications
• Reduced need for complex suction piping

Limitations:

• More difficult to access for maintenance
• May require lifting equipment for repairs
• Installation can be more complex

Vertical pumps are commonly chosen when space is limited or suction conditions are challenging.

What Is a Horizontal Pump?

A horizontal pump has a shaft that runs parallel to the ground and is typically mounted on a base or skid. These are the most commonly used pumps across general industrial and commercial applications.

Key Features:

• Ground-level installation
• Easy access to components
• Requires more floor space
• Widely used in standard systems

Advantages:

• Easier maintenance and servicing
• Lower downtime due to accessibility
• More stable operation at high flow rates
• Simpler installation

Limitations:

• Larger footprint required
• May require priming
• Not ideal for deep suction applications

Horizontal pumps are preferred when ease of maintenance and high flow performance are priorities.

Vertical vs. Horizontal Pumps: Key Differences



Space & Installation Considerations

One of the biggest deciding factors is available space:

• Vertical pumps:

              - Require minimal floor space

              - Can be mounted directly into tanks or pits

              - Ideal for confined environments

• Horizontal pumps:

             - Require more room for installation

            - Need a stable base and alignment

            - Better suited for open mechanical rooms

Performance Differences

Vertical Pumps:

• Ideal for high head, low suction pressure
• Perform well in deep sump or well applications
• Better for handling volatile liquids

Horizontal Pumps:

• Best for high flow, low-to-medium head systems
• More stable at higher speeds
• Common in general water transfer and circulation

Maintenance & Accessibility

This is where horizontal pumps clearly stand out:

• Horizontal pumps:

            - Easy access to seals, bearings, and motors

            - Faster repairs

            - Lower downtime

• Vertical pumps:

            - Components may require removal from above

            - Often need cranes or lifting tools

             - More time-intensive servicing

Horizontal pumps are generally more maintenance-friendly, especially in high-service environments.

When Should You Choose a Vertical Pump?

Choose vertical pumps if:

• Space is limited
• You need to pump from a deep sump or well
• Suction conditions are difficult
• You’re working with:

             - Wastewater systems

             - Industrial tanks

            - Underground applications

When Should You Choose a Horizontal Pump?

Choose horizontal pumps if:

• You have adequate space
• Maintenance accessibility is important
• You need high flow performance

Ideal for:

• Commercial water systems
• Irrigation systems
• Industrial fluid transfer
• HVAC and circulation systems

Which Pump Is Right for You?

Both pump types are effective—but the right choice depends on your system requirements:

• Vertical pumps = best for space-saving and deep suction
• Horizontal pumps = best for accessibility and high flow

If your priority is ease of maintenance and performance, horizontal pumps are often the go-to.
If your priority is space and suction conditions, vertical pumps are the better option.
