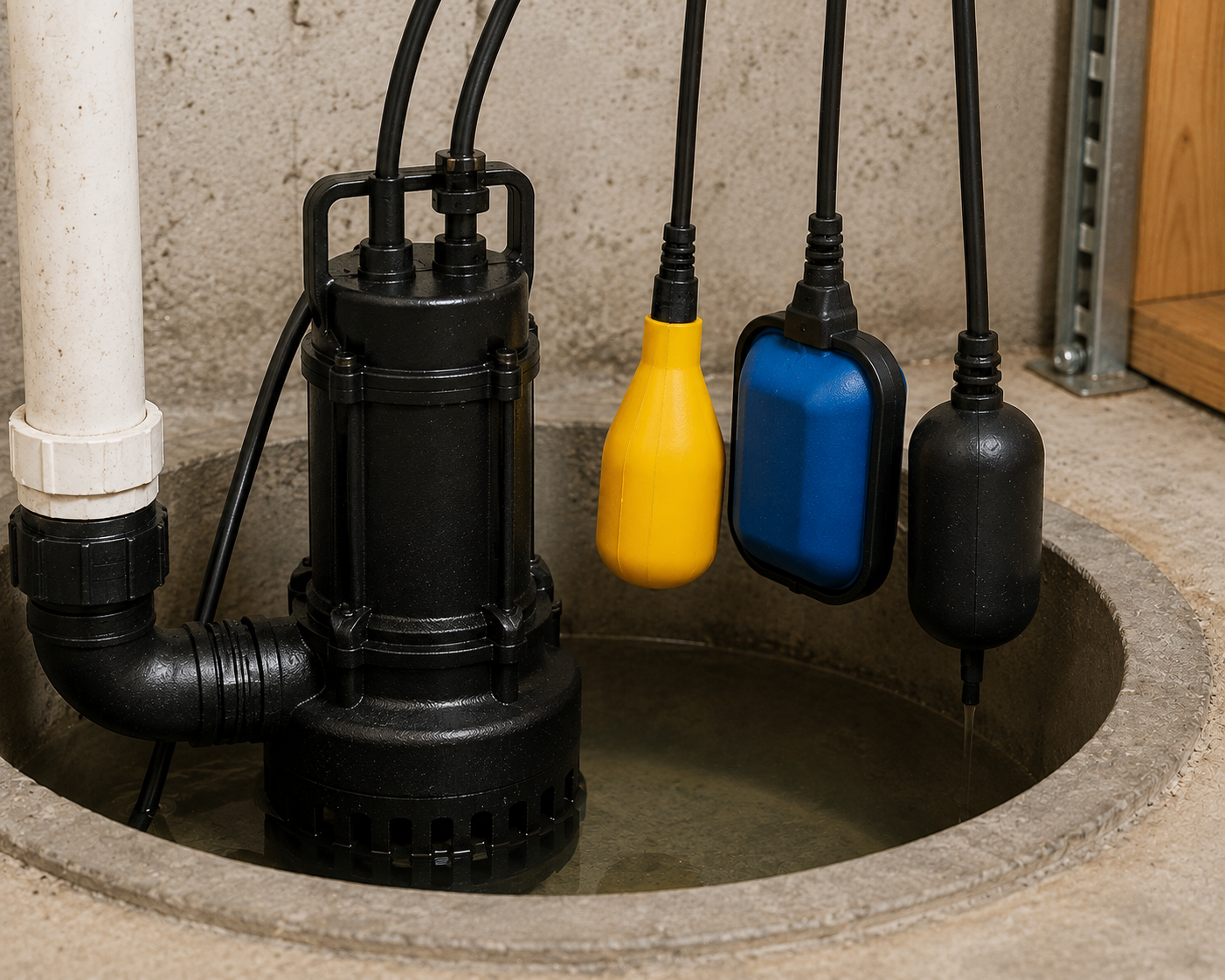

Pump Float Switches Explained: Types, Wiring, and How to Choose

A float switch turns your pump on and off automatically as the water level rises and falls. The three types you will see most are tethered, vertical, and piggyback, and the right one depends on your pit size, your pump, and how much control you want.

Whether you are replacing a worn switch or building a new pump setup, this guide covers the types, the wiring basics, and how to pick. Browse our float switches to see options for sump, sewage, and well applications.

1. What a Float Switch Does

A float switch is the automatic on and off control for a pump. A buoyant float rises with the water and, at a set level, closes a circuit to start the pump. As the water drops, the float falls and opens the circuit to stop it. Without a working float switch, a pump either runs dry or never turns on. Many failures people blame on the pump are really a stuck or worn float switch.

2. The Main Types of Float Switch

Tethered floats need room to swing, so they suit wider basins. Vertical floats have a short, controlled travel that fits narrow pits where a tethered float would hit the wall.

3. Piggyback vs Direct-Wired

A piggyback switch has a plug that the pump plugs into, and the switch plugs into the outlet. The switch controls power to the pump, and you can bypass it in seconds by plugging the pump straight into the wall to test it. A direct-wired switch is hardwired into the pump circuit, which is cleaner but harder to swap. For most homeowners, a piggyback switch makes testing and replacement far simpler.

4. Sizing a Float Switch for Your Pit

Match the switch to the basin, not just the pump:

• Narrow pit (under 14 inches): use a vertical or electronic switch so the float does not catch on the wall.
• Wide pit: a tethered float gives a longer on and off gap, so the pump cycles less often.
• Adjustable range: tethered and rod switches let you set the on and off points to control cycle length.

Short, frequent cycling wears out both the pump and the switch, so a little extra drawdown between on and off is a good thing.

5. Wiring Basics and Safety

Two things matter most when wiring a float switch. First, match the voltage: a 115V (often labeled 110V) switch goes with a 115V pump, and a 230V pump needs a 230V rated switch and control. Second, match the amp rating of the switch to the pump's running and startup current, or use a control panel or relay for larger pumps. For three phase or larger single phase pumps, a control panel handles the switching so the float only carries a small control signal.

Pump wiring involves line voltage and local electrical codes. If you are not fully comfortable with electrical work, hire a licensed electrician. Always disconnect power before servicing a pump or switch.

6. Signs Your Float Switch Is Failing

A failing float switch often looks like a pump problem. Watch for these:

• The pump runs constantly or will not shut off (float stuck up). See why a sump pump runs constantly.
• The pump never starts even with water in the pit (float stuck down or failed).
• The pump hums but moves no water, which can be a switch or an airlock. Start with sump pump not pumping water.
• Short cycling, where the pump snaps on and off rapidly, often a float set with too little travel.

Final Thoughts

The float switch is small, but it decides whether your pump runs when it should and rests when it should. Pick tethered for wide pits, vertical or electronic for narrow ones, and a piggyback design if you want easy testing. Match the voltage and amps, and when in doubt on the wiring, bring in an electrician. A ten dollar switch failing is a common and avoidable cause of a flooded basement.

Frequently Asked Questions

What is the difference between a tethered and a vertical float switch?

A tethered float hangs on a cord and tips at set levels, so it needs a wider pit and gives longer cycles. A vertical float slides up and down a rod with short travel, which fits narrow basins where a tethered float would hit the wall.

What is a 110V or 115V float switch?

It is a float switch rated to control a 115V pump, the standard household voltage often labeled 110V. Match the switch voltage to your pump: a 115V pump uses a 115V switch, and a 230V pump needs a 230V rated switch or a control panel.

What is a piggyback float switch?

A piggyback switch has a plug the pump plugs into, and it plugs into the wall outlet. It controls power to the pump and lets you bypass it in seconds by plugging the pump straight in to test it, which makes replacement easy.

Can a bad float switch make my pump run all the time?

Yes. If the float sticks in the up position or fails closed, the pump keeps running even after the water drops. A float stuck down does the opposite and stops the pump from starting. Testing the switch separately from the pump isolates the problem.
