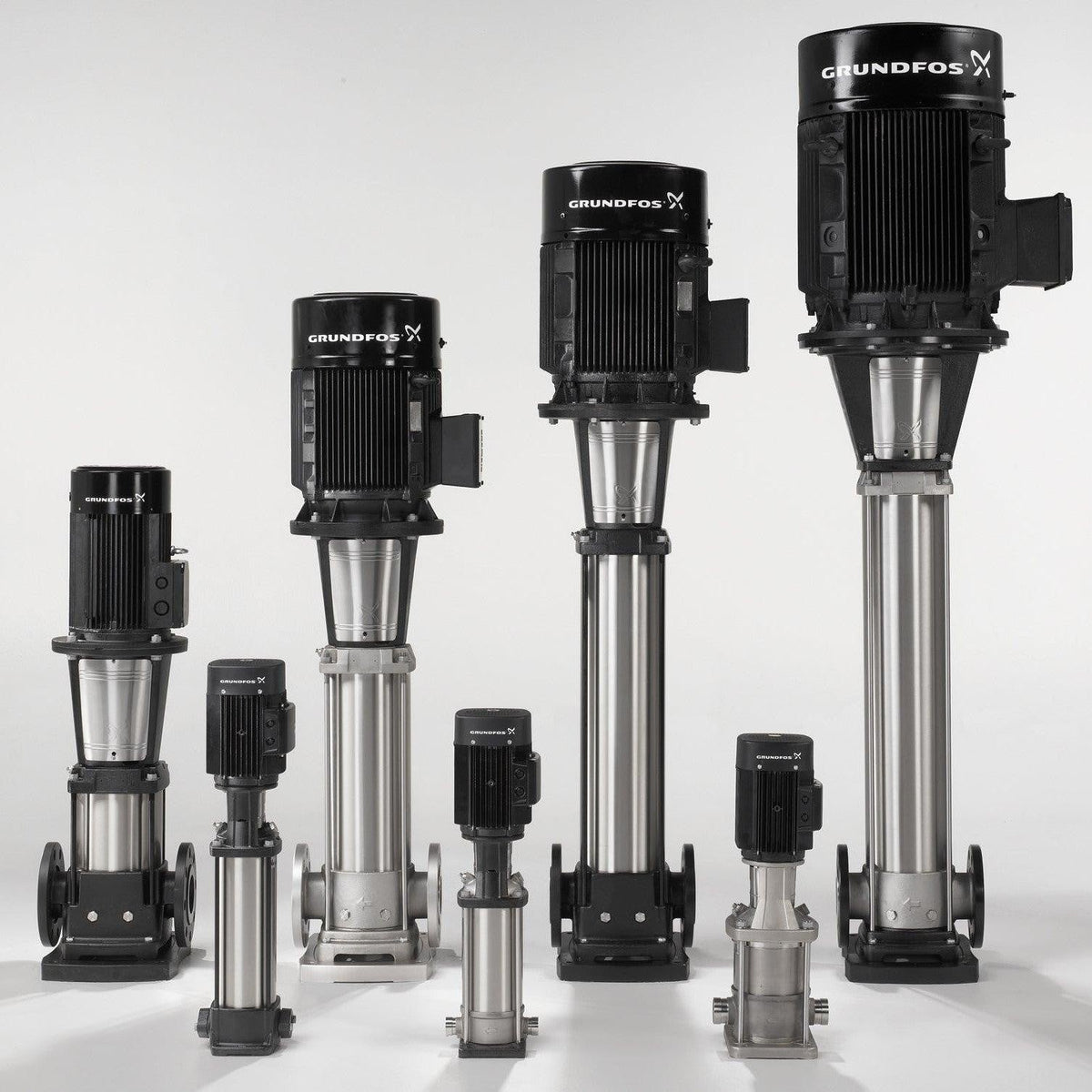

A Grundfos CR pump replacement may mean buying a complete pump and motor assembly, replacing the hydraulic wet end, or repairing a serviceable component. The right order follows the diagnosed fault and the condition of the equipment that will remain.
A wet end can be worth comparing when the existing motor is suitable and in good condition. A complete assembly deserves consideration when both the pump and motor need attention or the proposed installation requires a different configuration. Neither choice should be made from the lowest purchase price alone.
First establish what has failed
Have a qualified technician separate a pump fault from an electrical, control or inlet problem. Low pressure does not by itself prove the wet end is worn. A leak may call for a seal repair rather than replacing the whole assembly.
Use ePumps' Grundfos CR troubleshooting guide to organize the information you discuss with the technician. Record the finding before requesting replacement equipment. Replacing a pump without resolving the cause of failure can leave the same problem in the new installation.
Understand what a wet end order covers
The wet end is the hydraulic portion of the pump, separate from the motor. It is an option to investigate when the hydraulic assembly needs replacement and retaining the motor makes sense.
Have the supplier identify exactly what the quoted wet end includes. Ask about the seal, coupling components, motor interface and any hardware needed to complete the work. Do not assume every listing supplies the same parts or that the existing motor can be reused without inspection.
For example, ePumps lists a Grundfos CR3-11 flanged wet end 96083190. Its model, hydraulic arrangement and connections must match the proposed duty and installation. It is not a substitute for a different CR3 model simply because both belong to the CR3 family.
Know when to compare a complete assembly
A complete pump and motor quote can make the replacement scope easier to define when the existing motor is damaged, unsuitable or due for replacement. It also lets you compare the cost of retaining older equipment with the cost of replacing the assembly together.
The Grundfos CR3-10 96083072 listing is one ePumps product to review when investigating a CR3-10 purchase. Confirm the current supplied product number, motor configuration and package contents with ePumps. An assembly does not automatically include the external controls, valves, fittings or installation labor needed for the finished system.
Ask the technician whether the retained control panel, motor protection and piping can support the quoted replacement. A complete pump is still one part of the installation.
Check the full identification and physical fit
Send photographs of the pump and motor nameplates, the existing connections, and the space around the assembly. Include the full type designation and product number. Grundfos uses several nameplate formats, so photograph the entire label rather than copying only one field.
Compare the approved dimensional drawing with the actual installation. Check connection type and size, pipe centerlines, base mounting, overall height and service clearance. For a wet end, verify the motor frame, shaft and coupling compatibility as part of the quoted scope.
If a product number has changed, request written confirmation of the offered replacement and any installation changes. Similar model names and product photographs do not prove that two builds are interchangeable.
Confirm that the duty still matches
The old model is useful evidence, but the system may have changed since it was installed. Give the supplier the required flow, discharge head, inlet conditions and liquid temperature. Include changes to piping, treatment equipment or operating demand.
A CR used in a boiler feed or condensate application needs its actual temperature, inlet conditions and materials reviewed. A category label does not establish suitability for every hot-water service. For material questions, use the existing CR versus CRI versus CRN guide alongside the current product documentation.
Compare the installed scope
Request two comparable quotes when both routes are viable. Include the equipment, required adapters and seals, motor or coupling work, removal, installation and commissioning. Identify what equipment each option leaves in service.
For an October maintenance window, establish the shutdown plan before placing the order. Confirm current availability and whether the proposed lead time fits that plan. Buying a spare also requires a storage and identification plan so it is ready for the installation it is intended to support.
Browse Grundfos pumps and replacement options, then call ePumps at (844) 378-6771. Send your nameplate photos and the technician's findings to request a wet end or complete assembly quote matched to the job.
Frequently asked questions
Does a Grundfos CR wet end include a motor?
A wet end is the hydraulic pump assembly, separate from the motor. Confirm the exact included components and compatible motor arrangement for the quoted product.
Is a wet end always the cheaper replacement?
Not on an installed-cost basis. Compare motor condition, compatibility, additional components, labor and commissioning before choosing between a wet end and a complete assembly.
Can I replace a CR pump with any wet end in its family?
No. Confirm the hydraulic duty, full configuration, connections and motor interface. A shared family designation does not establish interchangeability.
