A condensate return pump replacement should begin with the existing steam-system duty and the fault that has been found. Matching tank size or motor horsepower alone can leave important differences unresolved. Before heating demand increases, use the available service window to confirm the full replacement scope.
This guide concerns commercial steam condensate equipment. Small pumps that drain furnace or air-conditioning condensate are a different category. Identify the actual service before searching for a replacement.
Establish whether the pump or the whole unit needs work
A failed motor, leaking pump assembly and deteriorated receiver call for different decisions. Have a qualified technician inspect the equipment and document the problem. Replacing a complete unit may be unnecessary if the receiver and controls remain serviceable; replacing only the motor may be insufficient if other components are damaged.
Review condensate return pumps for pump-only options and condensate return units for complete assemblies. Compare the correct scope from the outset.
Record the replacement information
Photograph the pump, motor and receiver nameplates. Record model numbers, voltage, phase, connections and available installation space. Include the existing control panel and how the equipment is connected to the rest of the steam system.
Ask the technician for required flow and discharge conditions. Also record the actual condensate temperature and receiver arrangement. These are operating requirements, not details to infer from the visible tank size.
Check receiver condition and installation fit
The receiver and pump should be considered together. Inspect documented corrosion, leakage and mounting condition, and determine whether those issues change the replacement plan. Verify connection positions as well as overall dimensions.
A tank with the same nominal gallon capacity may have different inlet elevations, service clearances or piping connections. Have the installer compare the proposed drawing with the equipment room. Include delivery access and the space required to remove the old assembly.
Review temperature and suction conditions
Hot condensate requires appropriate pump and seal ratings. The installer should also assess inlet conditions so the pump can operate without cavitation. A pump selected only for discharge pressure may still have a problem at its inlet.
For the product quote, provide measured or documented operating conditions. Avoid copying another building's specification because its boiler has similar horsepower. Return piping, elevation and water temperature can change the selection.
Confirm the control sequence
A condensate unit typically transfers water in response to receiver level. A boiler feed arrangement responds to a different system requirement. Have the technician verify the existing control sequence and the proposed replacement's wiring and panel requirements.
For duplex installations, confirm how the pumps alternate and what each pump is intended to handle. Do not assume that two pumps automatically provide independent power or full backup capacity. The designed sequence and shared equipment determine what redundancy is available.
Compare an Air Flow unit as a configured assembly

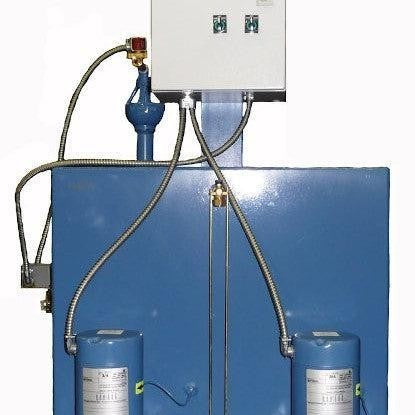

ePumps lists the Air Flow AFP-110DS-C as a condensate pump system with a 110-gallon steel receiver. Treat the listing as a starting point for a configuration review, not proof that it fits every mid-sized building.
Confirm the pump count, motor details, controls and options for the quoted unit. Product photos can show an arrangement that differs from the selected order. Ask for the final drawing and specification before authorizing piping changes.
Use the fall service window to finish the order
Have the installer separate diagnostic findings from purchase requirements. Resolve needed repairs and return-system issues before blaming the pump for every symptom. Then obtain a quote for the approved equipment and installation scope.
Confirm availability and delivery requirements before setting the shutdown schedule. The cost comparison should include connections, removal, commissioning and any control work as well as the equipment itself.
Browse Air Flow pumps and call ePumps at (844) 378-6771 with your nameplate information, operating duty and receiver drawing. Confirm the replacement configuration before heating-season demand makes scheduling more difficult.
For more on pumping systems in larger properties, see our guide to water pumps for commercial buildings and property management.
Frequently asked questions
Can I replace a condensate pump by horsepower alone?
No. Match flow, discharge conditions, temperature, inlet conditions, electrical supply and installation requirements for the actual service.
Does a failed pump mean the receiver must be replaced?
Not necessarily. Have the pump, receiver and controls inspected to determine the appropriate replacement scope.
Is a steam condensate unit the same as a furnace drain pump?
No. They serve different equipment and operating conditions. Select the correct category before comparing models.
