Buying boiler feed equipment before winter starts with the boiler's documented requirements. The pump must deliver the required flow against the operating conditions, with a suitable inlet supply and compatible controls. A matching motor horsepower or receiver capacity cannot establish that fit.
October is a practical time for facilities using steam heating to resolve replacement specifications and lead times. The goal is to have the equipment decision ready before a fault forces an urgent shutdown.
Identify the equipment you are replacing
Determine whether the project needs a pump, motor, complete feed unit or a redesigned arrangement. Keep the boiler feed function separate from condensate transfer and heating-water circulation. Those applications can require different equipment and control logic.
ePumps offers boiler feed pumps and complete feed units. Start with the existing equipment record and the engineer's approved scope, then choose the appropriate category.
Request flow and pressure requirements
Have the engineer or qualified boiler contractor establish the required flow and discharge pressure. The pump curve should meet that duty under the intended conditions. Do not select by maximum head alone or assume the old pump was correctly sized.
Document any changes since the original installation. A revised boiler arrangement, piping change or operating pressure can alter the duty. Ordering an identical-looking replacement may perpetuate an existing mismatch.
Include feedwater temperature and inlet conditions
Temperature affects equipment selection as well as suction conditions. Have the designer compare available inlet conditions with the pump's required net positive suction head, usually shortened to NPSH. This review helps address cavitation risk before the equipment is installed.
That calculation belongs in the technical selection process. A blog cannot determine it from tank capacity or a product image. Provide the actual temperature, receiver arrangement and suction piping information when requesting a quote.
Decide whether a complete feed unit is needed
A complete unit brings a receiver, pumping equipment and specified components together. The receiver must suit the system's storage and return behavior, and the final control arrangement must match the boiler installation.
Browse our boiler feed units to review complete assemblies, then confirm the required configuration with ePumps

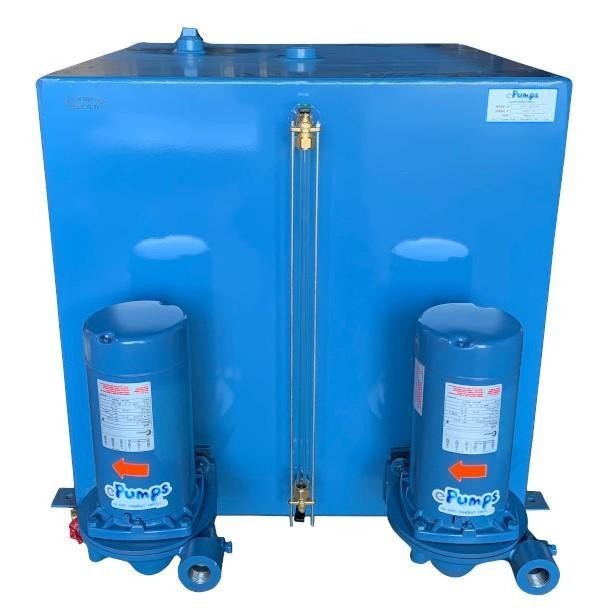

The Air Flow AFP-65S-C-BF is listed with a 65-gallon steel receiver, reverse-acting float switch, air gap and solenoid valve. Those features help identify the product family, but they do not prove the unit is correctly sized for a particular boiler.
Ask ePumps to confirm the final pump count, motors, controls and options on the supplied assembly. A photograph showing two pumps is not a specification for every configuration sold under a related listing.
Review controls and protective functions
Have the boiler contractor establish how feed demand, receiver level, makeup water and protective devices interact. Verify that the quoted equipment can be connected to the approved control scheme. Never bypass a boiler safety device to compensate for an equipment mismatch.
For multiple-boiler systems, the controls and piping require particular attention. Each boiler's demand must be handled as the design intends. A common equipment label does not replace a review of the complete arrangement.
Check physical and electrical compatibility
Record voltage, phase, motor information and the control-panel requirements. Measure equipment-room access, mounting positions and service clearances. Confirm inlet and discharge connection sizes and elevations against the approved drawing.
Include removal and delivery in the purchase plan. A unit can have the correct duty yet still require unexpected piping or access work. Resolve those details before deciding the installation date.
Prepare a complete quote request
Send the supplier the existing nameplates, approved duty, temperature, electrical supply, receiver requirements and connection drawing. Identify the shutdown window and ask for the actual configuration and lead time.
Where the receiver remains serviceable and the design calls for a pump-only replacement, ask ePumps about the applicable Grundfos boiler feed options. Where a complete assembly is required, review the Air Flow feed system with the installer.
Call ePumps at (844) 378-6771 to confirm the equipment against those requirements. Compare the complete installed scope rather than the purchase price of an unmatched pump.
For more on pumping systems in larger properties, see our guide to water pumps for commercial buildings and property management.
Frequently asked questions
Is a boiler feed pump the same as a circulator?
No. Boiler feed equipment supplies feedwater for its specified service; a heating circulator performs a different system function.
Can receiver gallons determine the right feed unit?
No. Receiver capacity is one selection factor. Flow, pressure, temperature, controls and system return behavior also require review.
Should I order the same model as the old pump?
Only after verifying that it meets the current duty and installation requirements. System changes or an earlier sizing problem can make another configuration necessary.
